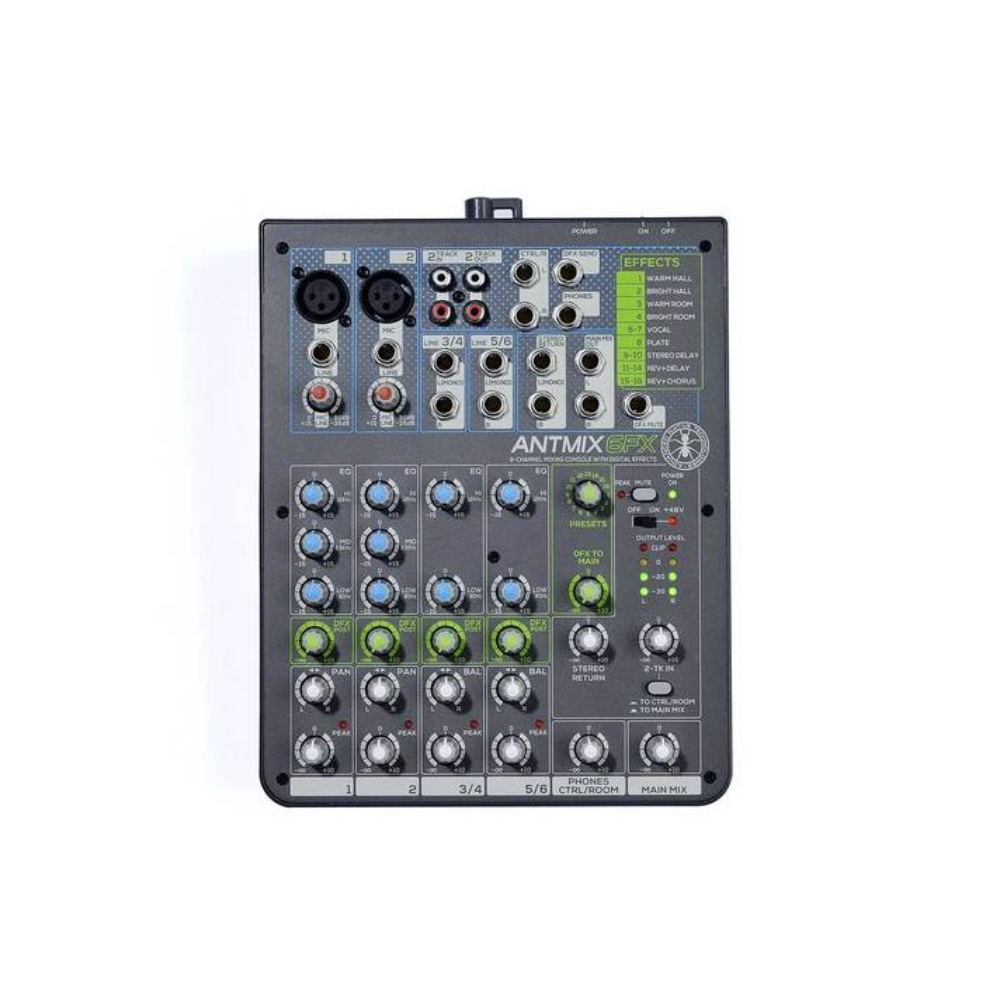

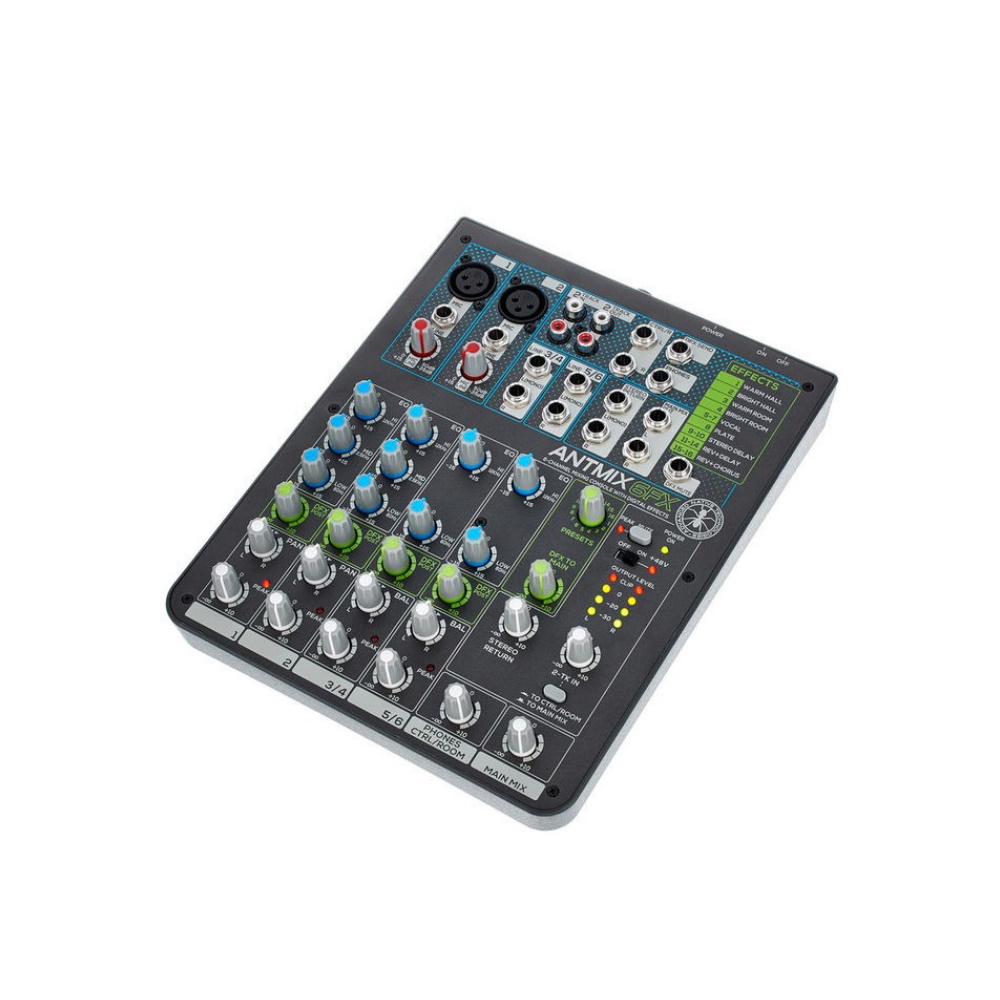

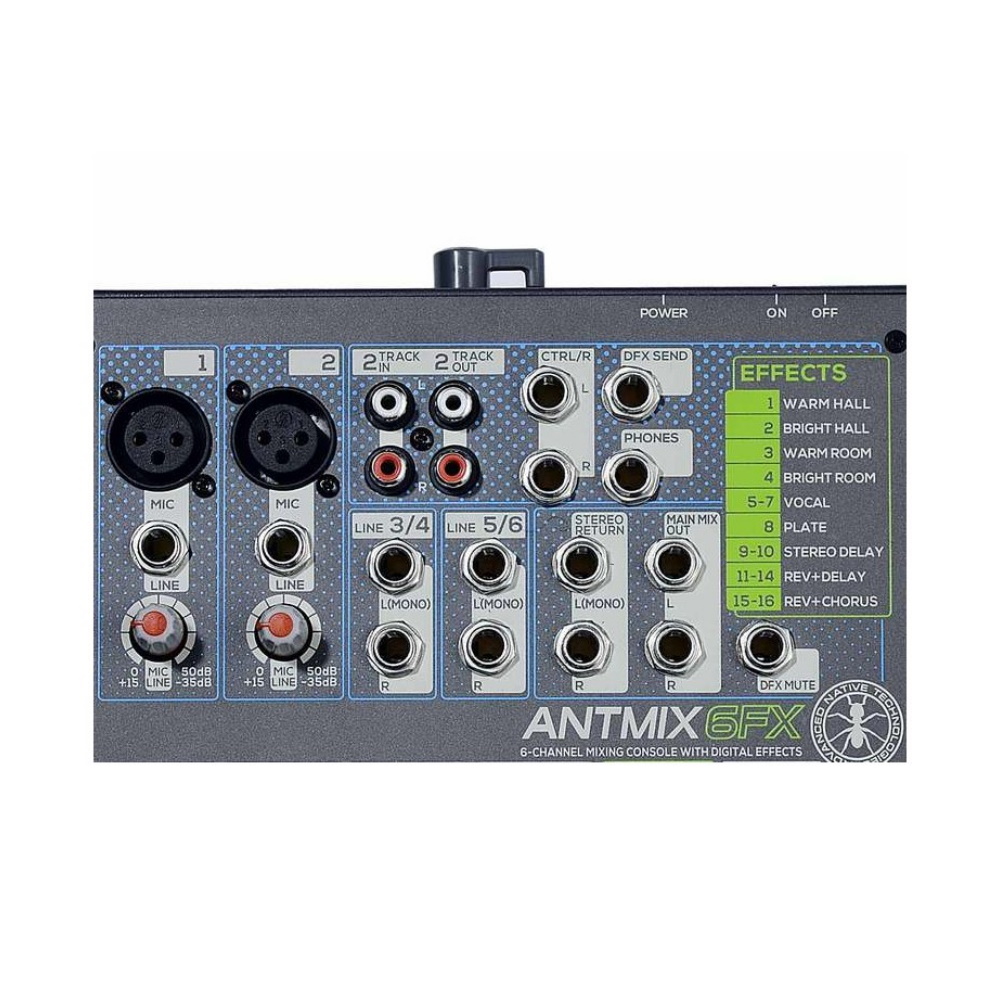

Mixer professionale con effetti 6 canali ANT MIX6FX
ANT MIX 6FX MIXER 6 CANALI CON 16 EFX
CONSOLLE MIXER A 6 CANALI
ANTMIX 6FX permette un controllo completo della riproduzione sonora in molti tipi di applicazione, dalla conferenza a 1 microfono a situazioni più complesse con musica dal vivo. Il design delle consolle permette a ogni utilizzatore, anche il meno esperto, di ottimizzare le prestazioni audio dell’impianto in uso.
Per questo ANTMIX è una soluzione semplice provvista di dettagli professionali, ad esempio un processamento digitale del suono con effetti e variazioni, faders da 60mm, Ingressi e uscite che adattano la consolle a diverse esigenze.
Il miglior suono da ogni performance audio.
EFFETTI digitali a 24-bit per un mix ancora più creativo
MIC PREAMP integrato per riduzione del rumore e una maggiore dinamica
SPECIFICHE
MONO mic/line inputs 2
Mic mono/stereo line inputs-
Stereo line input 2
Dimensions (W x H x D) 196 x 68 x 243 mm
Weight 1,18 Kg
MICROPONE IMPUT
Connector Balanced XLR
Impedance1.8 kΩ
Frequency response 20~20kHz +/-1dB
Distortion (THD + N)<0,03% @ +0dB, 22~22 kHz, A weighted
Gain0~55dB
Max input+15dB (balanced)
Low-cut75Hz 12dB/oct.
Signal-to-noise ratio<-100 dBr A weighted
Phantom powering+48V
LINE INPUT
Connector Balanced6,35mm (1/4”) – unbalanced RCA
Impedance10 kΩ
Frequency response20~20kHz +/-1dB
Distortion (THD + N)<0,03% @ +0dB, 22~22 kHz, A weighted
Gain+15dB~-35dB
Signal-to-noise ratio<-100 dBr weighted A
COMMON SPECIFICATION
Compressor (only for channels featuring this control)Gain: 0 —> 9 dB | Soglia: 20 dB —> 5 dB
Hum & noise< -80dB (A weighted, full bandwidth, 1 channel and MAIN @ 0dB, other chan- nels @ minimum)
Crosstalk< -80dB (A weighted, full bandwidth, 1 channel and MAIN @ 0dB, other chan- nels @ minimum)
EQUALIZATION AND 2-TRACK IN
Mono & mono/stereo channels+/-15 dB @12 kHz / +/-15 dB @2.5 kHz /+/-15 dB @80 Hz+/-15 dB @12 kHz +/-15 dB @2.5 kHz / +/-15 dB @80 Hz +/-15 dB @12 kHz / +/-15 dB @2.5 kHz+/- 15 dB @80 Hz
Stereo channels+/-15 dB @12 kHz / +/-15 dB @80 Hz+/-15 dB @12 kHz +/-15 dB @80 Hz+/-15 dB @12 kHz / +/-15 dB @80 Hz
MICROPHONE INPUT
Connector2 x unbalanced RCA
Impedance10 kΩ
Frequency response20~20kHz +/-1dB
Distortion (THD + N)<0,03% @ +0dB, 22~22 kHz, A weighted
GainOFF~+15dB
STEREO RETURNS
Connector2 x balanced 6,35mm (1/4”)
Impedance10 kΩ
Frequency response20~20kHz +/-1dB
Distortion (THD + N)<0,03% @ +0dB, 22~22 kHz, A weighted
GainOFF~+15dB
DSP
A/D – D/A converters24 bit
Number of e ects16 for 6FX – 100 for 8Fx and 12FX
ControlsPresets rotary selector – 16 position (6FX) or 100 position (8FX & 12FX) DFX MUTE footswitch / DFX MUTE switch / DFX button (only 8FX & 12FX) Presets rotary selector – 16 position (6FX) or 100 position (8FX & 12FX) DFX MUTE footswitch / DFX MUTE switch / DFX button (only 8FX & 12FX)
OUTPUTS
MAIN MIX connectors2 x TRS 6,35mm (1/4”) connector (XLR in 12FX)
MAIN MIX max output level+22 dBu XLR balanced (+16 dBu unbalanced)
MAIN MIX output impedance120 Ω
GR1-2 in connectors (12FX only)2 x TRS balanced 6,35mm (1/4”)
GR1-2 max output level (12FX only)+22 dBu XLR balanced (+16 dBu unbalanced)
GR1-2 output impedance (12FX only)120 Ω
Headphones connectorUnbalanced TRS 6,35mm (1/4”)
Headphones impedance30 Ω
Control room connectors2 x balanced TRS 6,35mm (1/4”)
Control room impedance120 Ω
2-TK connectors2 x unbalanced RCA
2-TK impedance1 kΩ
